Ultra Super Series

g8-logo

Ultra Super Series offer longer wear life, higher shock load resistance and higher tensile strength than any other Tsubaki roller chain. The pins are through-hardened and the pin holes are critically formed and ball drifted. The diameter of the pins has been increased.

This chain is well suited for applications where there are space limitations. The heavy duty construction of the Ultra Super Series chain allows it to replace chains up to two pitch sizes larger ANSI G8 Series chain. It is best suited for low speed operating conditions up to 50 m/min.

heavyduty-ultrasuper1

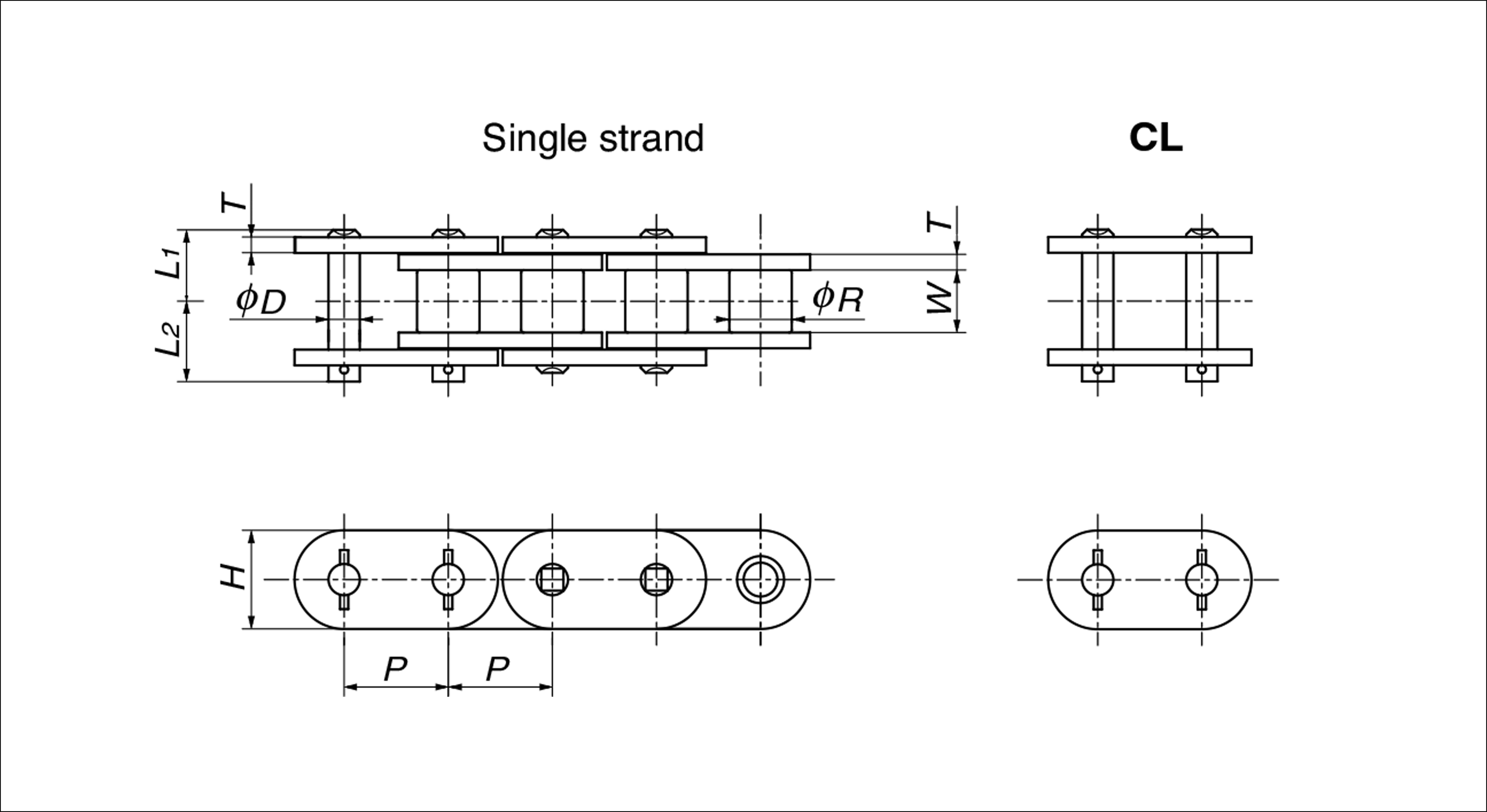

Single Strand Details

Tsubaki Ultra Super Heavy Duty Chain
Dimensions-mm
Tsubaki Chain No. Pitch
p
Roller Diameter
d1
Inner Width
b1
RF100-US-1 31.75 1 1/4" 19.05 19.05
RF120-US-1 38.10 1 1/2" 22.23 25.40
RF140-US-1 44.45 1 3/4" 25.40 25.40
RF160-US-1 50.80 2" 28.58 31.75
Dimensions in mm
Tsubaki Chain No. Pin Link Plate
Diameter
d2
Length
L1
Length
L2
Thickness
T
Height
H (max.)
RF100-US-1 10.32 22.35 25.35 4.80 30.10
RS120-US-1 12.28 27.55 31.55 5.60 36.20
RS140-US-1 13.97 29.50 34.20 6.40 42.20
RS160-US-1 15.62 34.50 40.20 7.10 48.20
Dimensions in mm
Tsubaki Chain No. Min. Tensile Strength acc. to Tsubaki
kN
Av. Tensile Strength acc. to Tsubaki
kN
Approx. Mass
kg/m
RS100-US-1 149.0 172.0 5.07
RS120-US-1 213.0 245.0 7.22
RS140-US-1 273.0 314.0 9.24
RS160-US-1 341.0 392.0 12.19
  • Standard ANSI sprockets can be used if the sprocket teeth have been hardened.
  • Steel grade of sprockets must be C45 or higher.
  • Offset links are not available.
  • Multi-strand chains are not available.
  • Press-fitted type connecting links are supplied.
